Home > Connector & Adapter > N

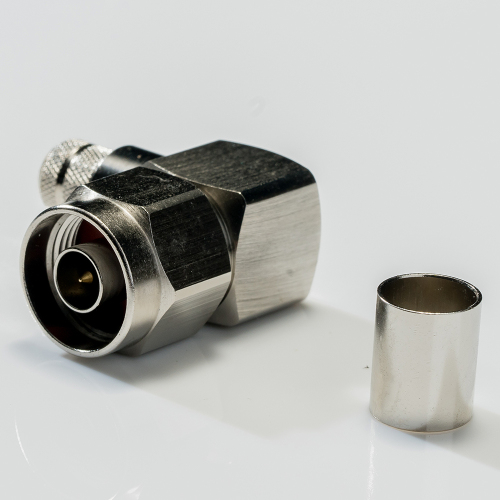

N Plug Angle Crimp Type Connector
N Plug Angle Crimp Type Connector N Plug Angle Crimp Type Connector N Plug Angle Crimp Type Connector N Plug Angle Crimp Type Connector N Plug Angle Crimp Type Connector N Plug Angle Crimp Type Connector N Plug Angle Crimp Type Connector N Plug Angle Crimp Type Connector N Plug Angle Crimp Type Connector
  • N Plug Angle Crimp Type Connector
  • N Plug Angle Crimp Type Connector
  • N Plug Angle Crimp Type Connector

N Plug Angle Crimp Type Connector

N Plug Angle Crimp Type Connector
Request Quote
Description Review
Description



N

N Connectors are available in straight and Right Angle connector, Clamp type and Crimp(Solder & Captive) type, Contact us by email [email protected].







Features



Low PIM.
Excellent RF performance






Specification


Material & Plating
Components Material    Plating
Center conductor Brass Ag
Body Brass CuZnSn
Insulator PTFE /
Other parts Brass CuZnSn

Impedance: 50 Ω
Frequency: DC - 6 GHz
VSWR: ≤ 1.15
PIM: ≤ -160 dBc (2*43 dBm)

N Male Clamp for LMR400(Download Datasheet)
N Male Right Angle Clamp for LMR400(Download Datasheet)
N Male Crimp for LMR400(Download Datasheet)
N Male for 1/4'' corrugated cable Captive Type(Download Datasheet)
N Male for 1/4'' corrugated cable Solder Type(Download Datasheet)
N Male for 1/2'' cable(Download Datasheet)
N Male for 1/2'' S Type(Download Datasheet)
N Male for RG402 Captive Type(Download Datasheet)
N Male for RG402 Solder Type(Download Datasheet)
N Male for 7/8'' Clamp Type(Download Datasheet)
N Female 4 hole flange mount type(Download Datasheet)





Application

Antennas

Base Stations
Instrumentation
Satellite Systems
WLAN
Braodcast




Connectors in Comparison


Click here to know more about the Low PIM Connector.
