Raynool manufacture and customized Low PIM RF Connector, Low PIM, Low Loss Cable Assembly for Public Safety DAS/BDA.
PIM is a type of distortion/noise generated by two or more high power signals interacting with non-linear characteristics in the RF path. To ensure the RF transition system is PIM rated, all the materials include RF Connector, Coaxial Bulk Cable, Cable Assembly, and Passive Components must have a PIM rated characteristic.
PIM is a type of distortion/noise generated by two or more high power signals interacting with non-linear characteristics in the RF path. To ensure the RF transition system is PIM rated, all the materials include RF Connector, Coaxial Bulk Cable, Cable Assembly, and Passive Components must have a PIM rated characteristic.
10+
Years Experience
1 week
Fast Turnaround
5000+
Products in stock
100%
Inspection

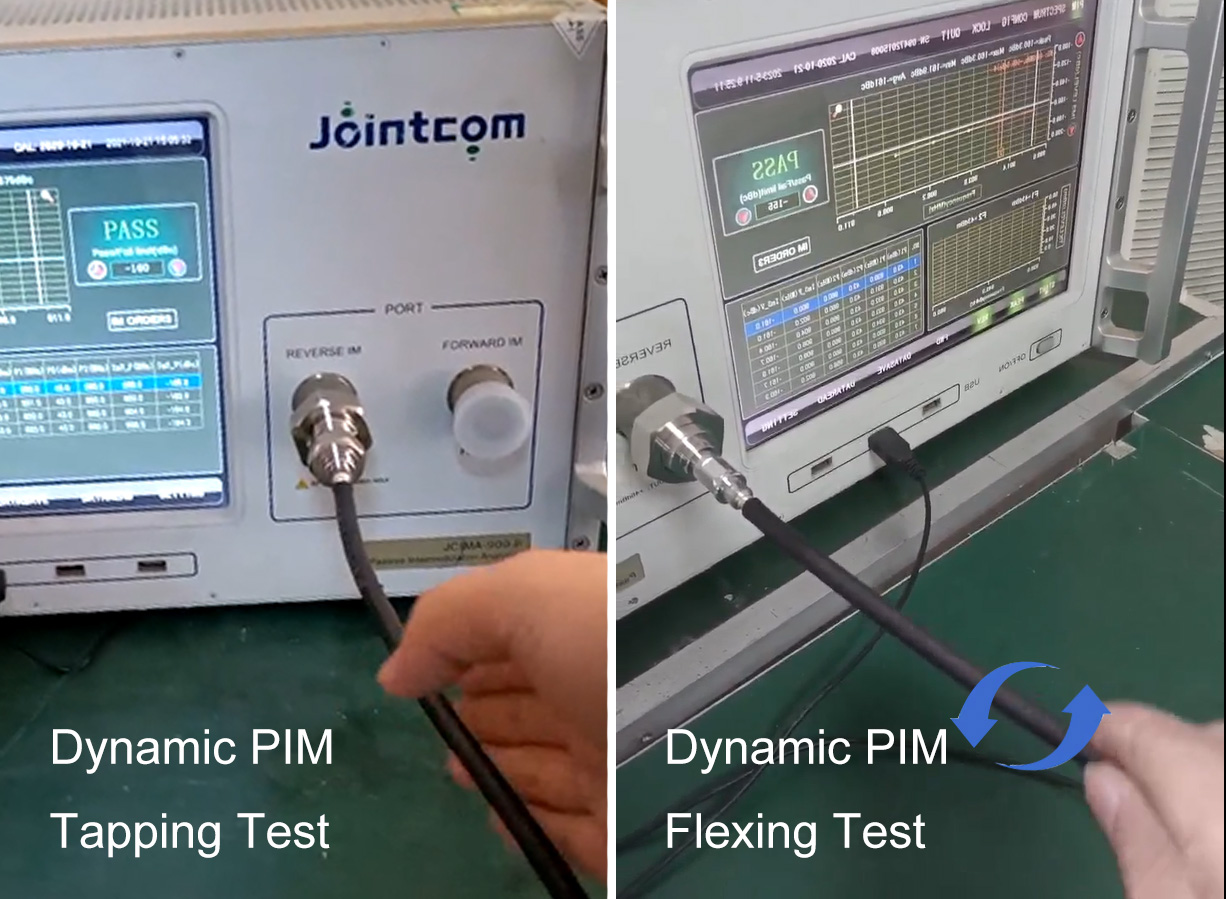

Dynamic PIM Test to Ensure Performance
There are 2 types of PIM test, Static PIM and Dynamic PIM test. The Dynamic PIM Tapping test and Flexing test can detect any non-linear contact within the transition, to guarantee the products have a high lever of PIM quality.
Raynool perform 100% static PIM test and dynamic PIM test on all Low PIM products, to ensure all the products our customer receive are reliable, high quality with outstanding Low PIM characteristic.
Raynool perform 100% static PIM test and dynamic PIM test on all Low PIM products, to ensure all the products our customer receive are reliable, high quality with outstanding Low PIM characteristic.

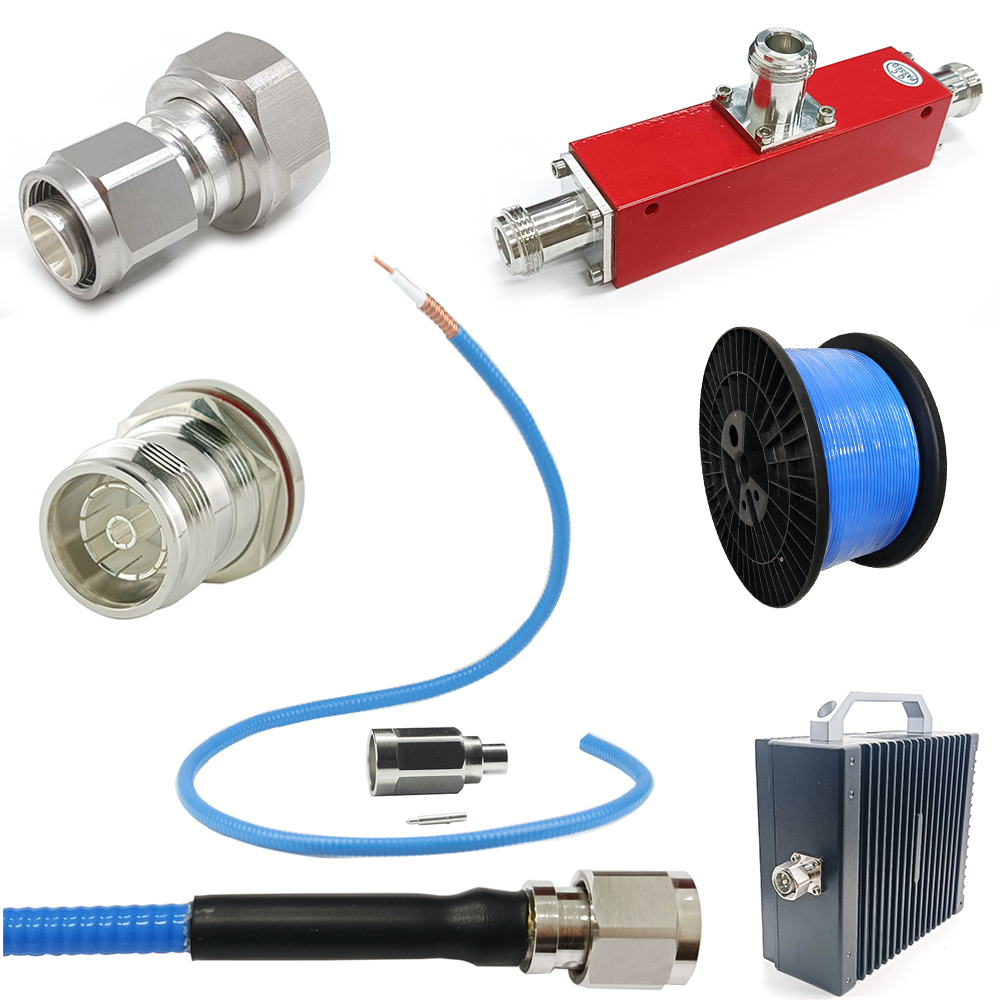

Low PIM Product series
Low PIM RF Connector
RNX10, 2.2-5, Type N, 4.3-10 solder to RG402/SPP-250-LLPL, field installation to 1/4"S, 1/2" corrugated cable
Low PIM RF Adapter
Varies versions of RF Adapter are available
Low PIM RF Bulk Cable
RG402, RG401, SPP-250-LLPL, Corrugated Cable
Low PIM RF Cable Assembly
Customized Connector & Cable
Low PIM Passive Components
Directional Coupler, Tapper, Loads
RNX10, 2.2-5, Type N, 4.3-10 solder to RG402/SPP-250-LLPL, field installation to 1/4"S, 1/2" corrugated cable
Low PIM RF Adapter
Varies versions of RF Adapter are available
Low PIM RF Bulk Cable
RG402, RG401, SPP-250-LLPL, Corrugated Cable
Low PIM RF Cable Assembly
Customized Connector & Cable
Low PIM Passive Components
Directional Coupler, Tapper, Loads
Raynool Low PIM Production Line
* We provide the stable and high-quality Low PIM products, our R&D and manufacturing team are more than 10-year's experience in RF connectors, RF adapters and cable assemblies.
* Fastest lead time with various connectors & cables inventory
* Cost-effective: we provide cost competitive jumpers with excellent electrical and mechanical performance to better support customers to explore the market.
Raynool Testing Equipments
| 700MHz PIM Tester 900MHz PIM Tester 1800MHz PIM Tester 1900MHz PIM tester 3800 MHz PIM Tester |
 |
 |
| 0-3 GHz Network Analyzer 0-6 GHz Netwrok Analyzer 0-50 GHz Network Analyzer |
 |
 |
