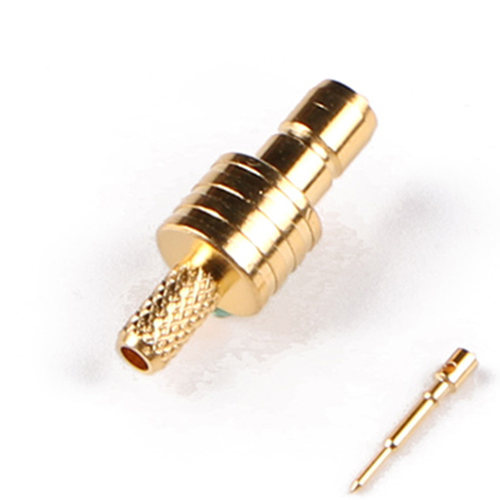

SMB Male Clamp/Solder attachment for RG cable

SMB Male Clamp/Solder attachment for RG cable,with Impedance 50 Ohm or 75 Ohm.
Description Review
Description
SMB Male Clamp/Solder attachment for RG cable

Key Description:

According to IEC 60169
  Material and Plating
Components Material Plating
Center conductor bronze Au
Body Brass Au
Insulator PTFE /
Gasket Rubber /

  Electrical data
Characteristic Impedance 50 Ohm or 75 Ohm
Frenquency Range DC-4 GHz(50 Ohm),2 GHz(75 Ohm)
VSWR ≤1.35
Dielectric Withstanding Voltage ≥4000V(rms)
Dielectric Resistance 10000 MΩ
Center Contact Resistance ≤0.4 mΩ
Outer Contact Resistance ≤1.5 mΩ
Durability Mating Cycles≥500
