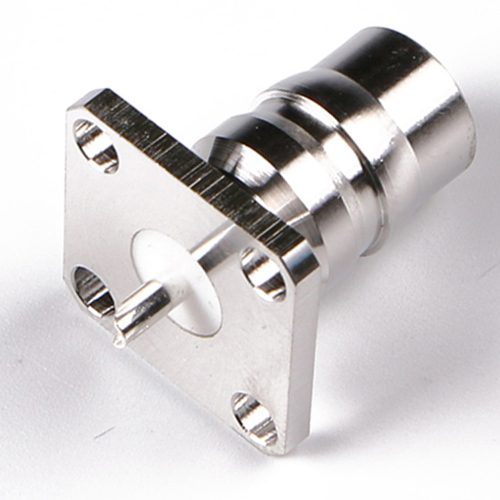

SMB Female Flange soldering attachment for RG cable

SMB Female Flange soldering attachment for RG cable,with Impedance 50 Ohm or 75 Ohm.
Description
SMB Female Flange soldering attachment for RG cable

Key Description:

According to IEC 60169
  Material and Plating
Components Material Plating
Center conductor bronze Au
Body Brass Ag
Insulator PTFE /
Gasket Rubber /

  Electrical data
Characteristic Impedance 50 Ohm or 75 Ohm
Frenquency Range DC-4 GHz(50 Ohm),2 GHz(75 Ohm)
VSWR ≤1.35
Dielectric Withstanding Voltage ≥4000V(rms)
Dielectric Resistance 10000 MΩ
Center Contact Resistance ≤0.4 mΩ
Outer Contact Resistance ≤1.5 mΩ
Durability Mating Cycles≥500
