RG8 Coaxial Cable
RG8 Coaxial Cable RG8 Coaxial Cable

RG8 Coaxial Cable

Item No.: RG8

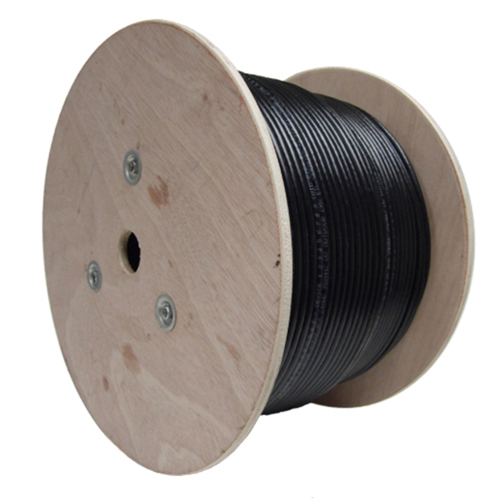

RG8 Coax Cable is 50 Ohm and has a Black PE Jacket
INQUIRY
Description



Coaxial Cable

Raynool 50 Ohm coaxial cable are available in corrugated, flexible, semi-flexible, or semi-rigid cable. a variety of dielectric including PTFE, Low Density PTFE, PE, Foam PE, Jacket including FEP, PVC, PE, or without Jacket. Most of standard coaxial cable are avialable for the same the shipping. for custom coaxial cable, Raynool sales are available to support you(sales@raynool.com)







Features



Low Loss.






Specification


 Generic Name  RG8/KSR400
 Impedance  50 Ohm
 Dielectric Type  Foam PE
 Jacket Material  PVC
 Jacket Diameter  0.400 in(10.16 mm)
 Minimun Bend Radius        4.0 in(101.6 mm)
 Attenuation  3.9dB/100ft @ 900 MHz
 Attenuation  10.8dB/100ft @ 4500 MHz


RG8/KSR400(Download Datasheet)
KSR195(Download Datasheet)
KSR200(Download Datasheet)
KSR240(Download Datasheet)
KSR300(Download Datasheet)
KSR600(Download Datasheet)

FEP RG402 (Dowload Datasheet)
FEP RG401 (Dowload Datasheet)
FEP RG405 (Dowload Datasheet)
1/4'' LD-PTFE corrugated cable (Dowload Datasheet)

1/4'' corrugated cable(Download Datasheet)
1/2'' flexible corrugated cable(Download Datasheet)
1/2'' Superflexible corrugated cable(Download Datasheet)
7/8 Cu corrugated cable(Download Datasheet)
7/8'' Al corrugated cable(Download Datasheet)

RG142(Download Datasheet)
RG213(Download Datasheet)
RG214(Download Datasheet)
RG223(Download Datasheet)

Semi-rigid RG405(Download Datasheet)





Application

Small Cell Applications
Low-power base stations
In multi-operator/multiband DAS
Blind mate for panel as well as test & measurement
