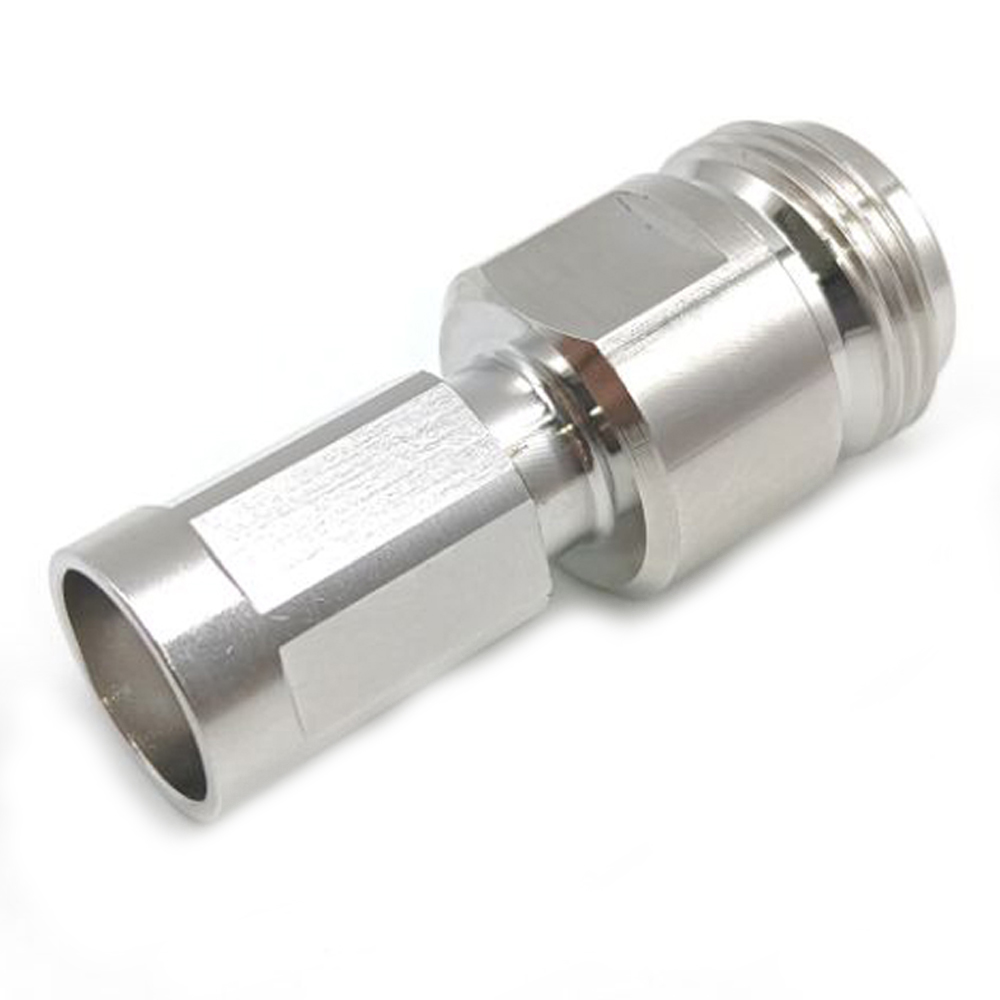

Low PIM Coaxial RF Adapter RNX10 Male to N Female
Low PIM Coaxial RF Adapter RNX10 Male to N Female Low PIM Coaxial RF Adapter RNX10 Male to N Female Low PIM Coaxial RF Adapter RNX10 Male to N Female Low PIM Coaxial RF Adapter RNX10 Male to N Female Low PIM Coaxial RF Adapter RNX10 Male to N Female Low PIM Coaxial RF Adapter RNX10 Male to N Female Low PIM Coaxial RF Adapter RNX10 Male to N Female Low PIM Coaxial RF Adapter RNX10 Male to N Female Low PIM Coaxial RF Adapter RNX10 Male to N Female
  • Low PIM Coaxial RF Adapter RNX10 Male to N Female
  • Low PIM Coaxial RF Adapter RNX10 Male to N Female
  • Low PIM Coaxial RF Adapter RNX10 Male to N Female

Low PIM Coaxial RF Adapter RNX10 Male to N Female

Item No.: 00631
Raynool manufacture a full series of Low PIM RF Adapter, with interface including RNX10, 2.2-5, Type N, 4.3-10, 7/16 DIN, These adapters are available in Male and Female, straight and Right Angle versions.
Request Quote
Description Review
Description
Low PIM Coaxial RF Adapter
Raynool manufacture a full series of Low PIM RF Adapter, with interface including RNX10, 2.2-5, Type N, 4.3-10, 7/16 DIN. These adapters are available in Male and Female, straight and Right Angle versions and allow for a seamless transition between two RF systems. These Low PIM Coaxial Adapters offer dependable performace up to 6 GHz.
10+
Years Experience
1 week
Fast Turnaround
2000+
Adapters in stock
100%
Factory Test
Low PIM Coaxial RF Adapter
RNX10 Male to N Female
Between-series Coaxial Adapter to varies interface RNX10 2.2/5 Type N 4.3/10 7/16 DIN are available.

Feature & Benefits:
(1) Impedance: 50 ohm.
(2) Low VSWR: < 1.15 @ 6 GHz.
(3) Low PIM: < -161 dBc @ 2*20W
(4) Durable Mechanics rated for > 500 cycles mating.
Electrical Data:
Frequency Ranges: 0-6 GHz
Impedance: 50 ohm
VSWR: <1.15
PIM: <-161 dBc @ 2*20W
Material & Finished
Center Conductor: Phosphor Bronze/Berillium Copper, Ag plating
Dielectric: PTFE
Body: Brass, Tri-Metal plating
To customized Coaxial RF Adapter or for further information/Datasheet
Contact: sales@raynool.com
RNX10 Series Low PIM Coaxial Adapter
RNX10 Male/Female to RNX10 Male/Female Coaxial Adapter
RNX10 Male/Female to Type N Male/Female Coaxial Adapter
RNX10 Male/Female to 4.3-10 Male/Female Coaxial Adapter
RNX10 Male/Female to 7/16 DIN Male/Female Coaxial Adapter
RNX10 Male/Female Flange Mount/Waterproof Coaxial Adapter

Application:
4G/5G Macro Station
Distributed Antenna Systems(DAS)
Laboratory testing
A PIM lever of -155 dBc @ 2*20W is a fairly standard in the industry, at Raynool, we design and test our RF Adapter with PIM better than -161 dBc @ 2*20W.
Low PIM Coaxial RF Adapter
Raynool manufactuer a full series of Low PIM RF Adapter, with interface including RNX10, 2.2-5, Type N, 4.3-10, 7/16 DIN, These adapters are available in Male and Female, straight and Right Angle versions and allow for a seamless transition between two RF systems. These Low PIM Coaxial Adapters offer dependable performace up to 6 GHz.

Feature:
1. Low PIM Performance: Low Passive Intermodulation(<-161 dBc) to meet the high requirement on DAS network.
2. Low Insertion Loss: Optimized structure to ensure minimal singal loss.
3. Dependable Performance: Robust design and Tri-metal plating to resist harsh outdoor environments(IP67 rated), 500 cycles mating.
4. Versatile Deployment: Ideal for 4G, 5G stations, Distributed Antenna Systems(DAS), BDA, Lab testing, ensuring Long term signal interity.
Low PIM Solution
PIM is a type of distortion/noise generated by two or more high power signals interacting with non-linear characteristics in the RF path. While PIM is an issue for almost every wireless system, it is more noticeable in cellular applications such as 5G because the frequency bands used are very close to each other. PIM can create interference that limits receive sensitivity, lowering the cellular system’s reliability, data rate, and capacity. Passive intermodulation issues can result in decreased system capacity and data rates and dropped calls.

Popular Products:
Low PIM RF Connector
RNX10, 2.2-5, Type N, 4.3-10 solder to RG402/SPP-250-LLPL, field installation to 1/4"S, 1/2" corrugated cable

Low PIM RF Adapter
Varies versions of RF Adapter are available

Low PIM RF Bulk Cable
RG402, RG401, SPP-250-LLPL, Corrugated Cable

Low PIM RF Cable Assembly
Customized Connector & Cable

Low PIM Passive Components
Directional Coupler, Tapper, Loads

Click here to know more about Raynool Low PIM Solution
