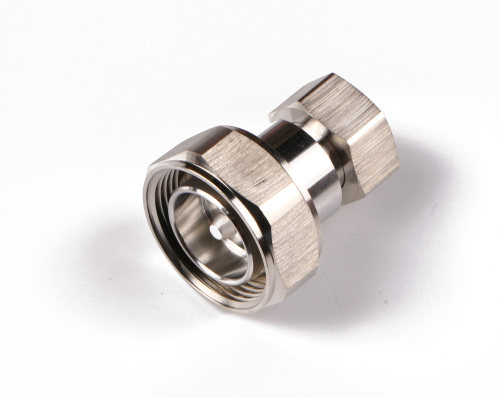

Low PIM Adaptor 7/16 DIN Male to 4.3-10 Male

Low PIM Adaptor 7/16 DIN Male to 4.3-10 Male
Description Review
Description
Low PIM Adaptor: 7/16 DIN Male to 4.3-10 Male

Key Description:

According to IEC 60169
  Material and Plating
Components Material Plating
Center conductor bronze Ag
Body Brass CuSnZn
Insulator PTFE /
Gasket Rubber /

  Electrical data
Characteristic Impedance 50 Ohm
Frenquency Range DC-3 GHz
VSWR ≤1.15
Dielectric Withstanding Voltage ≥2500V(rms)
Dielectric Resistance 5000 MΩ
Center Contact Resistance ≤1.0 mΩ
Outer Contact Resistance ≤1.5 mΩ
PIM ≤-160 dBc
Durability Mating Cycles≥500
