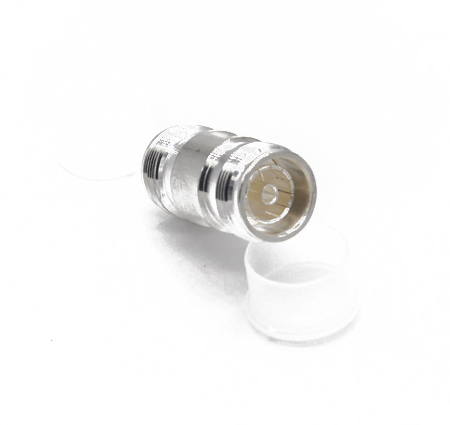

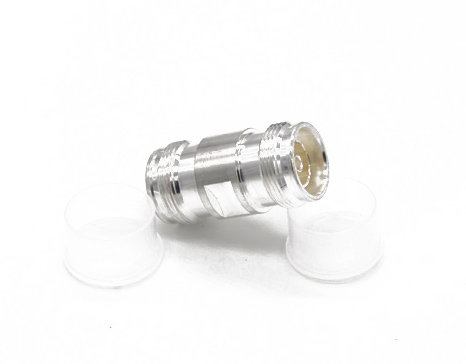

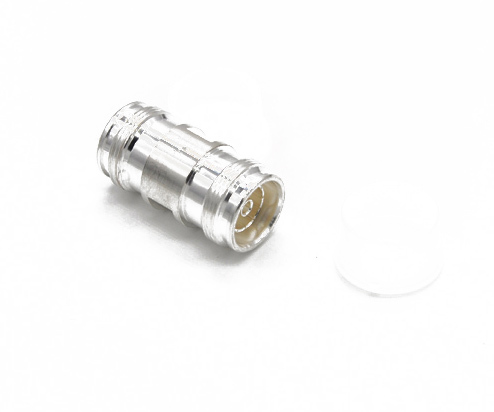

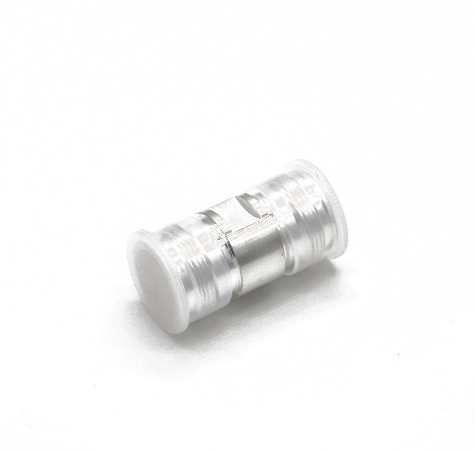

LOW PIM Adaptor 4.3-10 Female to 4.3-10 Female

LOW PIM Adaptor 4.3-10 Female to 4.3-10 Female
Description Review
Description
LOW PIM Adaptor 4.3-10 Female to 4.3-10 Female

Key Description:

According to IEC 60169
  Material and Plating
Components Material Plating
Center conductor bronze Ag
Body Brass CuSnZn
Insulator PTFE /
Gasket Rubber /

Electrical data
Characteristic Impedance 50 Ohm
Frenquency Range DC-18 GHz
VSWR ≤1.15
PIM@2*43 dBm 160 dBc
Durability Mating Cycles≥100
