Low PIM 2.2-5 Connector

Low PIM 2.2-5 coax connector
Description Review
Description

2.2-5 connector

As the telecommunications industry moves towards the small cell approach, the radio and antenna become smaller and ask for a small sized, high performing coaxial RF connector.
2.2-5 connector system will meet most of the existing and future demands of small cell networks for 4G and upcoming 5G networks. The highlights of the new connector system are its excellent PIM stability, and ruggedized design in a compact size.




Features



Low PIM.
Small size, Compact design(17.5 mm flange)
Robust design for outdoor use
Ideal for 1/4'' corrugated cable






Specification


Material & Plating
Components Material    Plating
Center conductor Brass Ag
Body Brass CuZnSn
Insulator PTFE /
Other parts Brass CuZnSn

Impedance: 50 Ω
Frequency: DC - 6 GHz
VSWR: ≤ 1.15
PIM: ≤ -160 dBc (2*43 dBm)


2.2-5 Male for RG402 cable (Download datasheet)

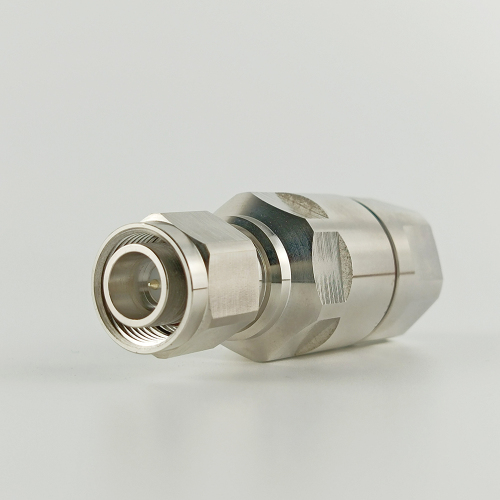

2.2-5 Male for 1/4 corrugated cable (Download datasheet)

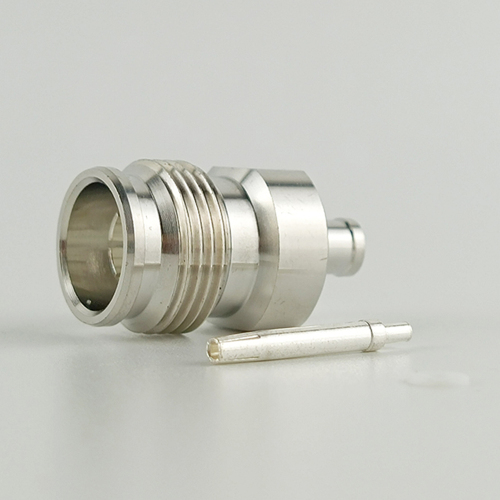

2.2-5 Female for RG402 cable (Download datasheet)
2.2-5 Female for 1/4 corrugated cable (Download datasheet)






Application

Small Cell Applications
Low-power base stations
In building architecture
Distributed Antenna Systems(DAS)
MIMO Antennas
Test & Measurement





Connectors in Comparison


The comparison of NEX10, 1.5-3.5, 2.2-5, 4.3-10 Connector are as below:
Specifications 1.5-3.5 2.2-5 4.3-10
PIM - 166 dBc @ 2 x 43 dBm        - 166 dBc @ 2 x 43 dBm        - 166 dBc @ 2 x 43 dBm
Power Handing             100W(2GHz, 85℃)                250 W (2GHz, 40°C) 500 W (2 GHz)

Return Loss (typ.)

DC to 6 GHz -32 dB DC to 6 GHz – 30 dB 1 GHz – 38 dB;
2.5 GHz – 32 dB
Frequency up to 30 GHz up to 20 GHz up to 6 GHz
Mating > 100 > 100 > 100
Impedance 50 Ω 50 Ω 50 Ω

Working temperature

-40°C to +85°C -40°C to +85°C -40°C to +85°C

IP classification

IP68 IP68 IP68
Mount Dimension 12.7mm 17.5mm 25.4mm
