Home > Passive Component > Low PIM Hybrid Combiner

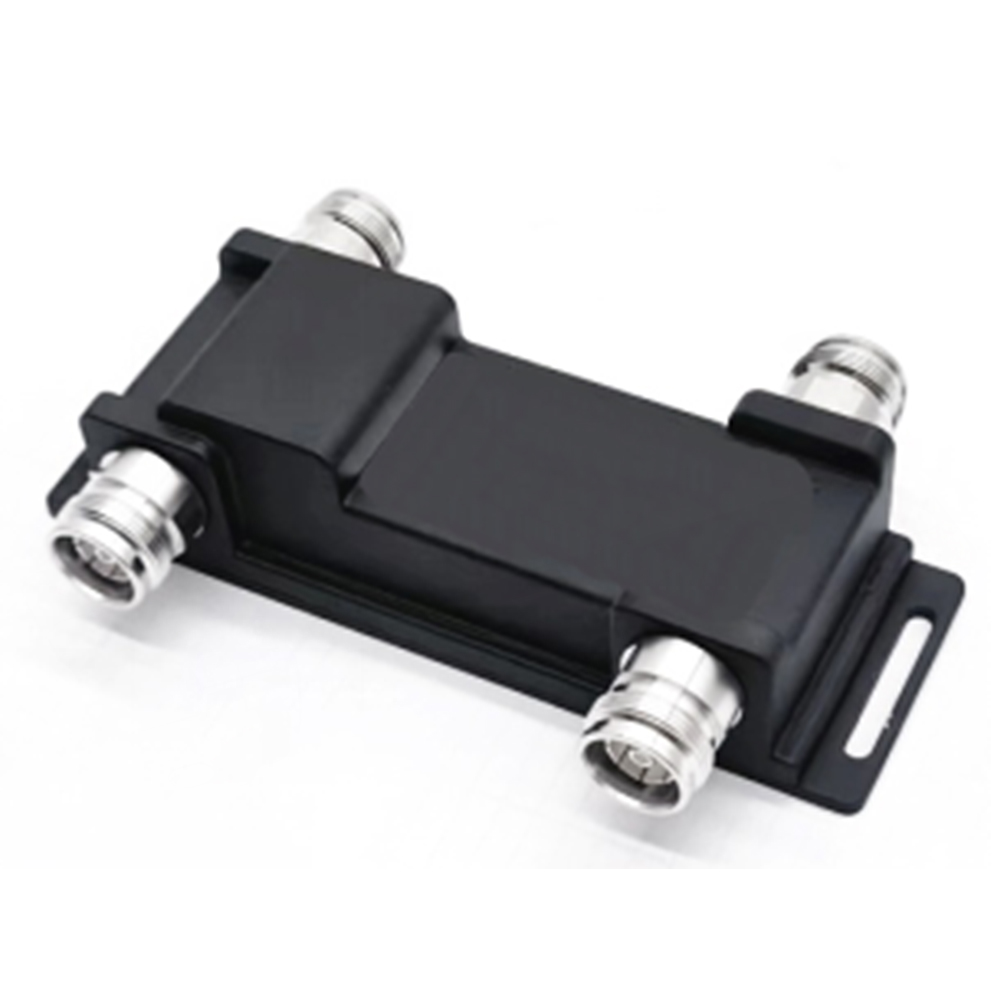

Low PIM 2 in 2 out Hybrid Combiner
Low PIM 2 in 2 out Hybrid Combiner Low PIM 2 in 2 out Hybrid Combiner Low PIM 2 in 2 out Hybrid Combiner
  • Low PIM 2 in 2 out Hybrid Combiner

Low PIM 2 in 2 out Hybrid Combiner

Item No.: 00613
Low PIM 2 in 2 out Hybrid Combiner, frequency 694 MHz to 4000 MHz, Low PIM - 160 dBc
Request Quote
Description Review
Description
Low PIM 2 in 2 out Hybrid Combiner
Frequency 694 - 4000 MHz
VSWR < 1.25
Low PIM <  -160 dBc
Input Power 250 W, total 500 W
Impedance 50 ohm
Insertion Loss 3.0 dB
Fluctuation ±0.5 dB
Isolation > 25 dB
Connector type N Female / 4.3-10 Female / DIN Female

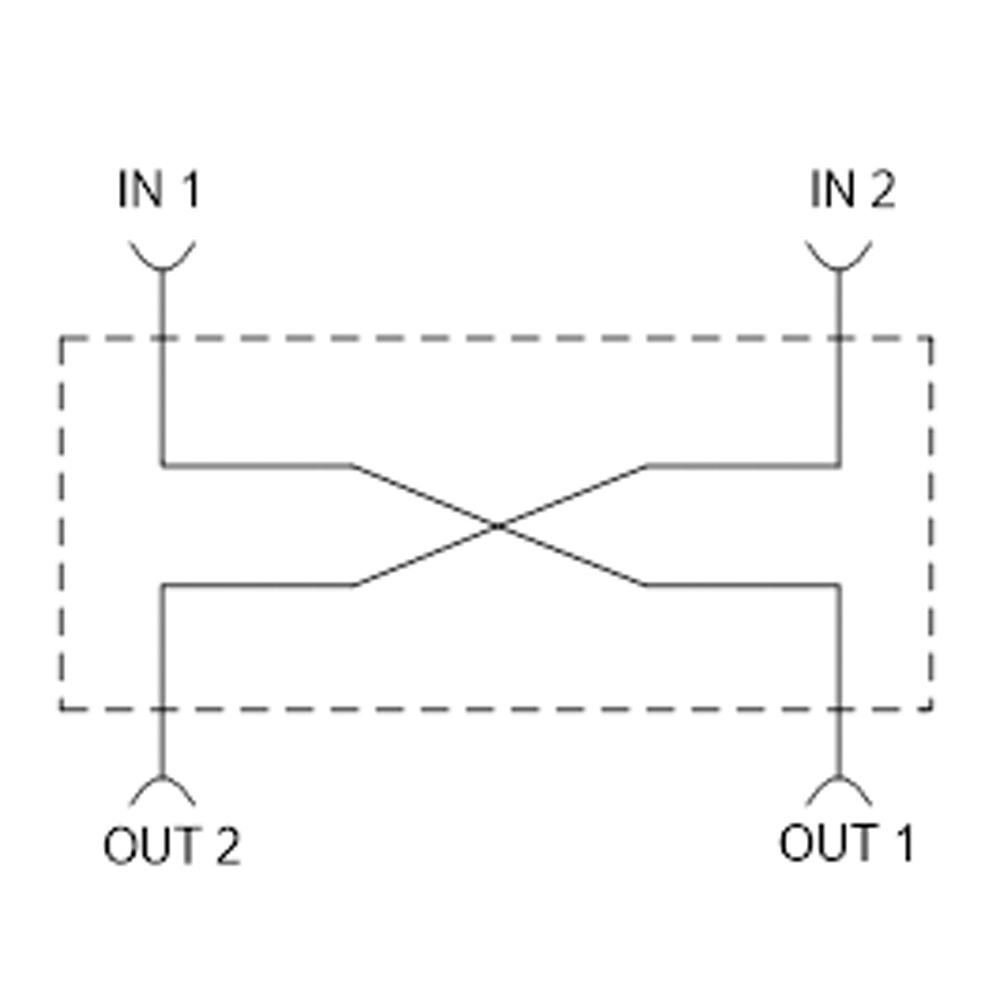

Schematic diagram:

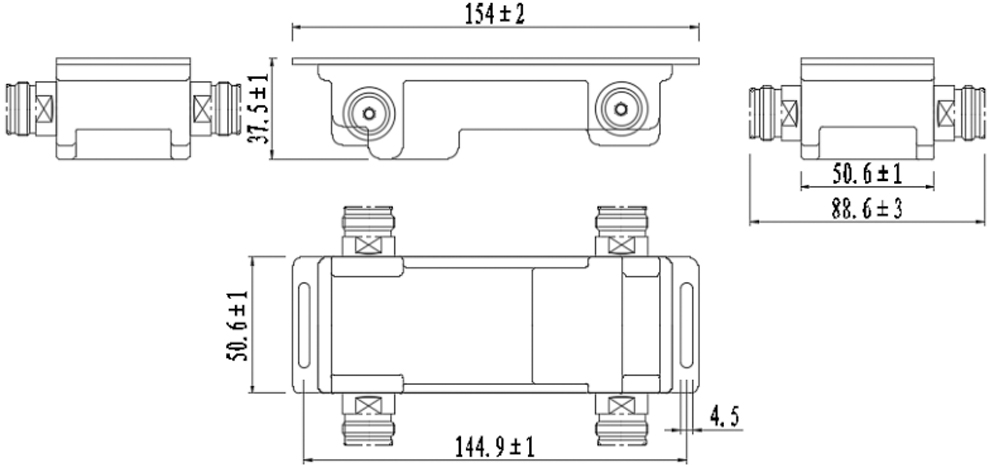

Dimension:
