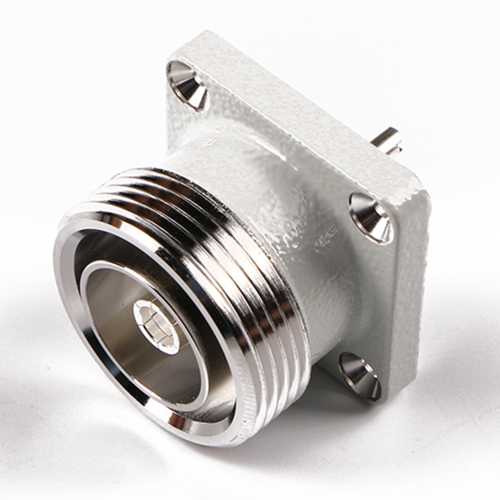

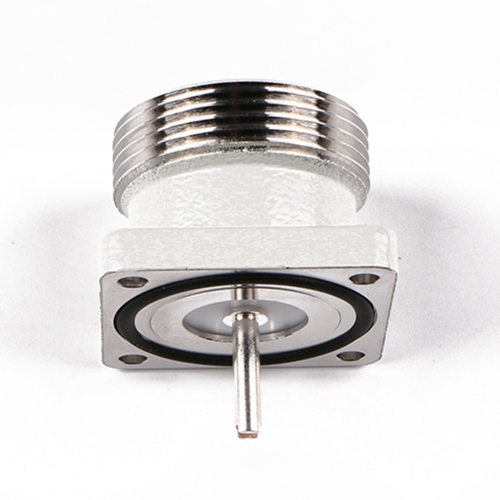

Low PIM Flange Connector Solder 7-16 DIN Female

Low PIM Flange Connector Solder 7-16 DIN Female ,with Impedance 50 Ohm,frequency range from DC to 6 GHz.
Description Review
Description

DIN Connector

Raynool DIN Connector are available in Male and Female version with 50 Ohm, 7-16 DIN connectors are available in straight or right angle versions, as well as, 4 hole flange, bulkhead version, contact our sales at [email protected] if the below connectors are not what you exactly need.





Features



Low PIM.
Robust design for outdoor use






Specification


Material & Plating
Components Material    Plating
Center conductor Brass Ag
Body Brass CuZnSn
Insulator PTFE /
Other parts Brass CuZnSn

Impedance: 50 Ω
Frequency: DC - 6 GHz
VSWR: ≤ 1.15
PIM: ≤ -160 dBc (2*43 dBm)

DIN Male Clamp for 1/2'' corrugated cable(Dowload Datasheet)
DIN Male Right Angle Clamp for 1/2'' corrugated cable(Dowload Datasheet)
DIN Male Clamp for 7/8'' corrugated cable(Dowload Datasheet)
DIN Female 4 Hole Flange Mount(Dowload Datasheet)

DIN Male Clamp for 1/4'' corrugated cable(Dowload Datasheet)






Application

Small Cell Applications
Low-power base stations
In multi-operator/multiband DAS
Blind mate for panel as well as test & measurement





Connectors in Comparison


Click here to know more about the Low PIM Connector.
