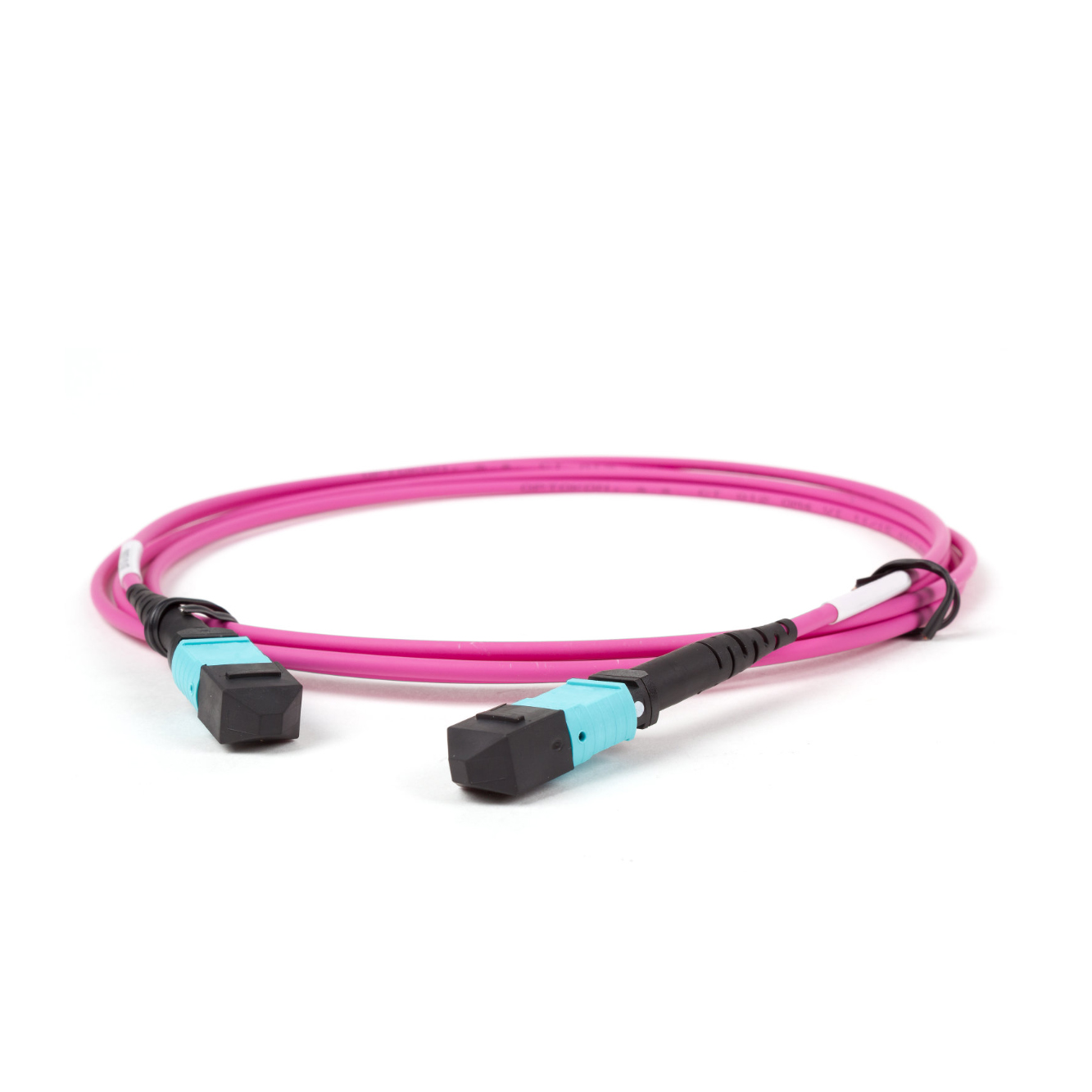

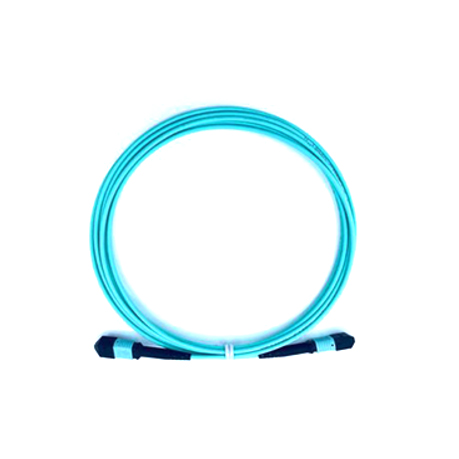

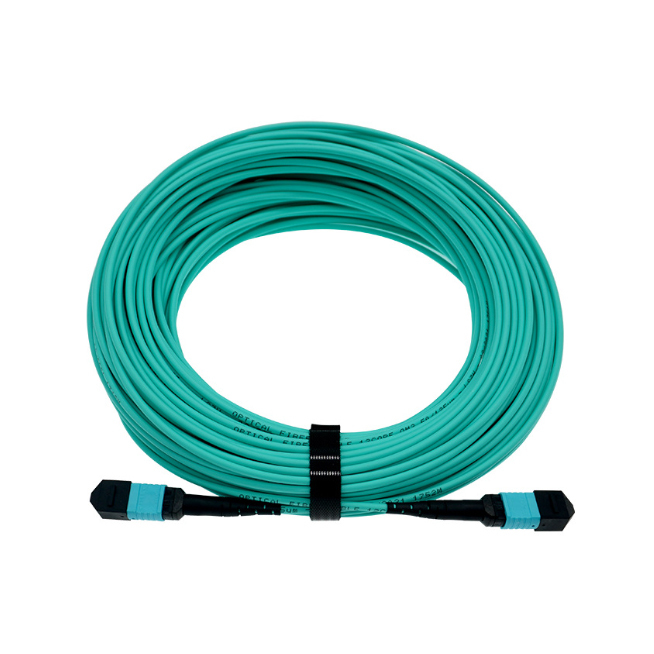

Name: Raynool Customized MPO Jumper 8-288F, OS2, OM3, OM4, Cable Jacket Available in Riser, OFNP and LSZH
Brand: raynool
SKU: 00605
Availability: InStock
Rating: 5 (1 reviews)

Home > Fiber Optic > Fiber Optic Patch Cord

Raynool Customized MPO Jumper 8-288F, OS2, OM3, OM4, Cable Jacket Available in Riser, OFNP and LSZH Flame Rating

Description Review

Description

Specification:
Custom Connector: Male connector(with Pin) and Female connector
Custom Fiber Jacekt: LSZH jacket is widely used in crowded area and enclosed area & indoors, OFNR jacket is Riser rated, and OFNP jacket is plenum rated.
Custom Polarity: Type A Straight through type is Pin 1 to Pin 1, 2 to 2, .... and Pin 12 to Pin 12, Type B, Cross over type is Pin 1 to Pin 12, Pin 2 to Pin 11, ... Pin 6 to Pin 7, Type C Cross pair type is Pin 1 to Pin 2, Pin 2 to Pin 1, Pin 3 to Pin 4, and Pin4 to Pin 3, ....
More custom made infomation as below, and please feel free to contact Raynool at sale@raynool.com to customized your MPO!
Custom made:

Connector	Male or Female
Fiber Count	8, 12, 16, 24
Polarity	Type A(Straight), Type B(Reversed), Type C(Pairs Flipped)
Cable Type	OS2, OM3, OM4
Cable Jacket Color	Aqua, Violet, Yellow
Cable Jacket Material	OFNP(Plenum), OFNR(LSZH), PVC
Cable Length	3 ft, 5 ft, 7 ft, 10 ft, 33 ft, 100 ft, 1 m, 1.5 m, 3 m, 10 m

Features:
Ultra Low Loss, Typical 0.35 dB Insertion Loss
Small Minibend Radius: 7.5 mm Minimal Bend Radius
Plenum Rated Jacket OFNP and Riser OFNR available
Easy Identification: Color Coded Connector Boots

Applications:
Data Centers
MPO Fiber Jumpers is extensively used in data centers, Servers, storage systems, and networking equipment have the requirement of the high speed data transfer, which is the MPO Fiber jumpers excel in. It enables rapid access to large volumes of data, facilitates efficient virtualization, and supports cloud computing services.
AI Artificial Intelligence
MPO Fiber Jumpers enables fast data exchange between nodes, reducing processing time and improving overall performance.
Gigabit Ethernet
The advantage of Gigabit Ethernet, which include Enhanced Network Performance, Seamless Integration and Backward Compatibility, Scalability, Cost-Effectiveness, can't be achieved without the application of the MPO Fiber Jumper cables, which also feature superior reliability, scalability, and flexibility.
Storage Area Networks
A Storage Area Network (SAN) is a high-speed, dedicated network that connects servers and storage devices, SAN require complicated management, feature low speed latency and high speed performance, and excel in scalibility, MPO Fiber Jumpers characteristic is an ideal match for the application for the SAN.
High-Performance Computing
MPO Fiber Jumpers are also widely used in places that require intensive computing and large-scale data processing, such as scientific research, engineering, and financial institutions.
Industrial Automation
MPO Fiber Jumpers high-speed capabilities, reliability, and compatibility make it ideal for data-intensive applications.

MPO Fiber Jumpers can significantly simply the installation, 1 MPO trunk cable can replace 12, 24 pcs or even more LC patch cord.

MPO Fiber Jumpers

Raynool MPO Fiber Jumper solution include MPO Fiber Jumpers, MPO Trunks, MPO Harnesses, MPO Conversions, and Aceessories.
Raynool can also custom Cable tailor to your project, with custom Fiber Counts, Mode, Polarity, Cable Length, Color

MPO Jumpers

8, 12, 16, 24 F to F Fibers

MPO Trunks

Robust and Longer length

MPO Harnesses

Ideal for patching within a cabinet

MPO Conversions

Provide the flexible Solutions

MPO Fibers is ideal for AI & Data Center

MPO Fiber Cables offer superior reliability, scalability, and flexibility for the AI & Data Center.

MPO Fiber Cables significantly simplifies the cable management, the high density of MPO connectors reduces cable cluster and installation time, with the less fiber and connector, it will be less likely to cause problem and also easier to locate the trouble when it has, thus more reliable when compared with AOC & DAC.

The scalable characteristic of the MPO Fiber is an ideal solution to meet the rapid development requirement of AI & Data Center.

MPO Fiber Cables can seamless migrate to higher data rates in the AI & Data Center.
