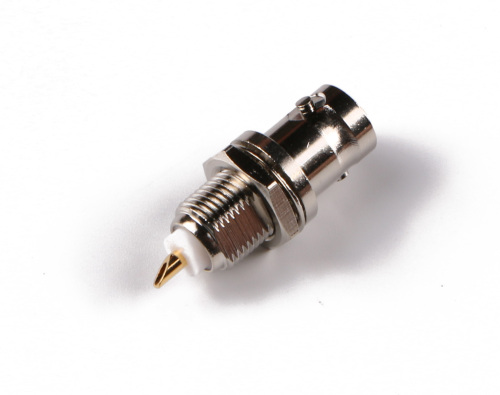

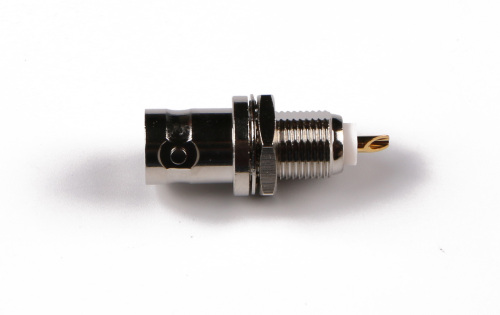

BNC Female Connector Solder Attachment for RG Cable

BNC Female Connector,with Impedance 50 Ohm or 75 Ohm,frequency range from DC to 4 GHz.
Description Review
Description
BNC Female Connector Solder Attachment for RG Cable

Key Description:

According to IEC 60169
  Material and Plating
Components Material Plating
Center conductor bronze Au
Body Brass Ag
Insulator PTFE /
Gasket Rubber /

  Electrical data
Characteristic Impedance 50 Ohm or 75 Ohm
Frenquency Range DC-4 GHz
VSWR ≤1.22
Dielectric Withstanding Voltage ≥4000V(rms)
Dielectric Resistance 10000 MΩ
Center Contact Resistance ≤1.5 mΩ
Outer Contact Resistance ≤1.0 mΩ
Durability Mating Cycles≥500
