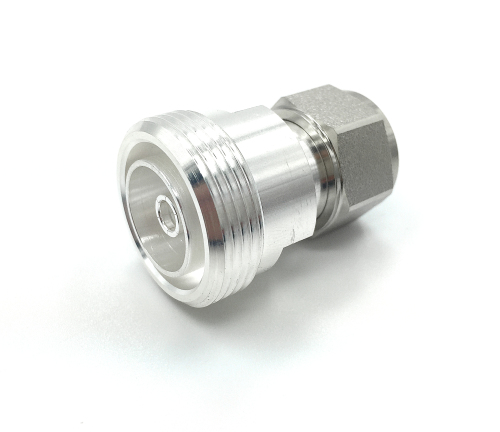

7/16 DIN Male to 7/16 DIN Female

Item No.: 7/16 DIN Male to 7/16 DIN Female
LOW-PIM adaptor 7/16 DIN Male to  7/16 DIN Female
LOW-PIM adaptor: 7/16 DIN Male to  7/16 DIN Female
Key Description:

According to IEC 60169
  Material and Plating
Components Material Plating
Center conductor bronze Ag
Body Brass CuSnZn
Insulator PTFE /
Gasket Rubber /
  Electrical data
Characteristic Impedance 50 Ohm
Frenquency Range DC-3 GHz
VSWR ≤1.15
Dielectric Withstanding Voltage ≥2500V(rms)
Dielectric Resistance 5000 MΩ
Center Contact Resistance ≤1.0 mΩ
Outer Contact Resistance ≤1.5 mΩ
PIM (2*43dBm) ≤-160 dBc
Durability Mating Cycles≥500
