4.3-10 Male to 4.3-10 Female RA

Item No.: 4.3-10 Male to 4.3-10 Female RA

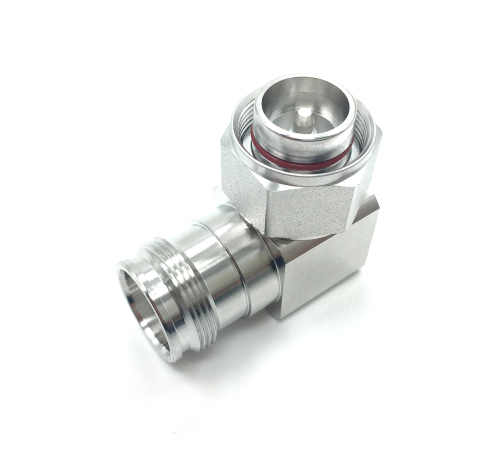

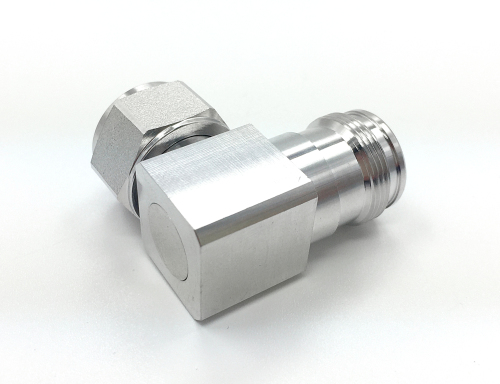

LOW-PIM adaptor 4.3-10 male to 4.3-10 female Right Angle
LOW-PIM adaptor: 4.3-10 male to 4.3-10 female Righ Angle

Key Description:

According to IEC 60169
  Material and Plating
Components Material Plating
Center conductor Berryllium bronze Ag
Body Brass CuSnZn
Insulator PTFE /
  Electrical data
Characteristic Impedance 50 Ohm
Frenquency Range DC-3 GHz
VSWR ≤1.15
Dielectric Withstanding Voltage ≥1500V(rms)
Dielectric Resistance 5000 MΩ
Center Contact Resistance ≤1.0 mΩ
Outer Contact Resistance ≤1.5 mΩ
PIM (2*43dBm) ≤-160 dBc
Durability Mating Cycles≥500
