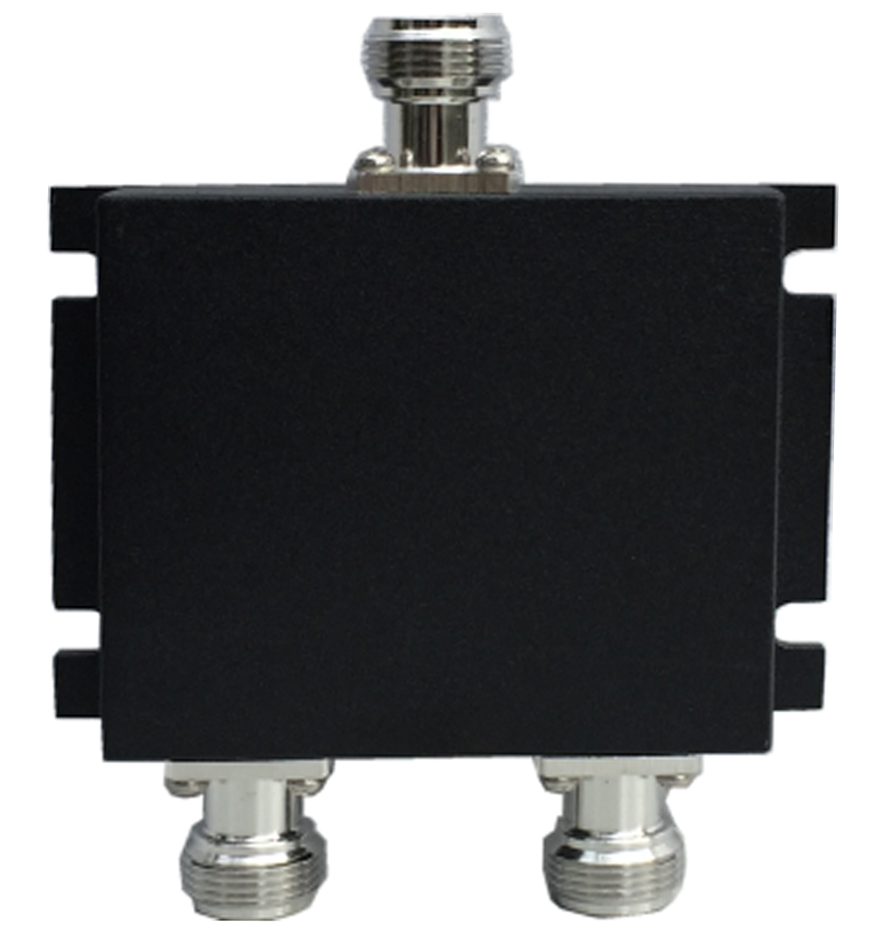

| 2 Way Wilkinson Splitter | 3 Way Wilkinson Splitter | 4 Way Wilkinson Splitter | |
| Impedance | 50 ohm | 50 ohm | 50 ohm |
| Frequency Range | 350 MHz to 880 MHz | 400 MHz to 800 MHz | 350 MHz to 870 MHz |
| Splitting Loss | 3.0 dB | 4.8 dB | 6.0 dB |
| Insertion Loss | ≤ 0.5 dB | ≤ 0.5 dB | ≤ 0.5 dB |
| Isolation | ≥ 20 dB | ≥ 18 dB | ≥ 20 dB |
| Power | 50 W | 50 W | 50 W |
| Connector | N Female | N Female | N Female |
| Operation Temperature | -40 ℃ to + 80 ℃ | -40 ℃ to + 80 ℃ | -40 ℃ to + 80 ℃ |
| 2 Way Wilkinson Splitter | 3 Way Wilkinson Splitter | 4 Way Wilkinson Splitter | |
| Impedance | 50 ohm | 50 ohm | 50 ohm |
| Frequency Range | 136 MHz to 960 MHz | 136 MHz to 960 MHz | 136 MHz to 960 MHz |
| Splitting Loss | 3.0 dB | 4.8 dB | 6.0 dB |
| Insertion Loss | ≤ 0.7 dB | ≤ 0.9 dB | ≤ 1.2 dB |
| Isolation | ≥ 20 dB | ≥ 20 dB | ≥ 20 dB |
| Power | 50 W | 50 W | 50 W |
| Connector | N Female | N Female | N Female |
| Operation Temperature | -40 ℃ to + 80 ℃ | -40 ℃ to + 80 ℃ | -40 ℃ to + 80 ℃ |
| 2 Way Wilkinson Splitter | 3 Way Wilkinson Splitter | 4 Way Wilkinson Splitter | |
| Impedance | 50 ohm | 50 ohm | 50 ohm |
| Frequency Range | 698 MHz to 2700 MHz | 698 MHz to 2700 MHz | 698 MHz to 2700 MHz |
| Splitting Loss | 3.0 dB | 4.8 dB | 6.0 dB |
| Insertion Loss | ≤ 0.7 dB | ≤ 0.9 dB | ≤ 1.2 dB |
| Isolation | ≥ 20 dB | ≥ 20 dB | ≥ 20 dB |
| Power | 50 W | 50 W | 50 W |
| Connector | N Female | N Female | N Female |
| Operation Temperature | -40 ℃ to + 80 ℃ | -40 ℃ to + 80 ℃ | -40 ℃ to + 80 ℃ |
