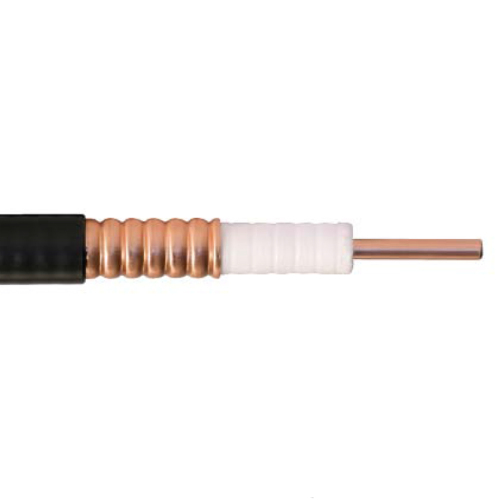

1/2'' Corrugated Cable

1/2'' Corrugated Cable is used for connect the antenna and RRU.
Description Review
Description



Coaxial Cable

Raynool 50 Ohm coaxial cable are available in corrugated, flexible, semi-flexible, or semi-rigid cable. a variety of dielectric including PTFE, Low Density PTFE, PE, Foam PE, Jacket including FEP, PVC, PE, or without Jacket. Most of standard coaxial cable are avialable for the same the shipping. for custom coaxial cable, Raynool sales are available to support you([email protected])








Features



Low PIM.
Low Loss.






Specification


 Generic Name 1/2'' Flexible Corrugated Cable
 Impedance  50 Ohm
 Dielectric Type  Foam PE
 Jacket Material  PE/LSZH
 Jacket Diameter  0.606 in(15.4 mm)
 Minimun Bend Radius         2.76 in(25.0 mm)
 Low PIM  -160 @ 900 MHz ~ 1800 MHz
 VSWR  1.15 @ 0~3 GHz, 1.25 @ 3~6 GHz


FEP RG402 (Dowload Datasheet)
FEP RG401 (Dowload Datasheet)
FEP RG405 (Dowload Datasheet)
1/4'' LD-PTFE corrugated cable (Dowload Datasheet)

1/4'' corrugated cable
(Download Datasheet)
1/2'' flexible corrugated cable(Download Datasheet)
1/2'' Superflexible corrugated cable(Download Datasheet)
7/8 Cu corrugated cable(Download Datasheet)
7/8'' Al corrugated cable(Download Datasheet)

KSR400(Download Datasheet)

RG142(Download Datasheet)
RG213(Download Datasheet)
RG214(Download Datasheet)
RG223(Download Datasheet)

Semi-rigid RG405(Download Datasheet)





Application

Small Cell Applications
Low-power base stations
In multi-operator/multiband DAS
Blind mate for panel as well as test & measurement





Connectors in Comparison


Click here to know more about the Low PIM Connector.
