Adapters

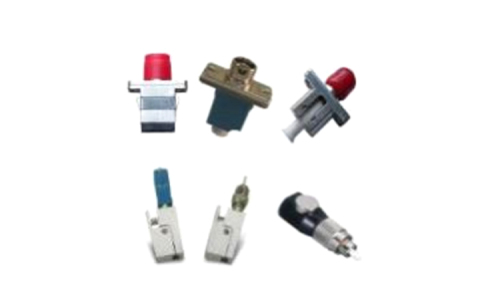

Fiber Optic Adapters

Description


FEATURES

· Excellent changeability and directivity

· 100% Optic test(Insertion Loss)

· Ceramic and phosphor bronze sleeve tube optional
· Accurate external size
· Individually packaged for the bare fiber adapter



APPLICATIONS

· Fiber optic transmission system

· CATV networks

· Fiber optic sensor
· Testing/Measurement Instruments



SPECIFICATION

Parameter SC,ST,FC,LC,MU,MTRJ,E2000,DIN,D4
SM/PC  SM/APC  MM/PC
Simplex or Duplex
Sleeve Material Ceramic and phosphor bronze sleeve
Insertion Loss <= 0.20dB
Return Loss PC>=50dB  APC>=60dB
Operating Temperature -40 to +85
Store Temperature -40 to +85
Related Humidity 95
Connection Durability 1000 Mating




HYBRID FIBER OPTIC ADAPTOR

Overview: Hybrid fiber optic adapters allow users to convert from one connector type to another. These fiber optic adapters are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism. These optic fiber adapters are precision made an manufactured to demanding specifications.
The combination of a ceramic/phosphor bronze alignment sleeves and a precison moulded polymer housing provides consistent long term mechanical and optical performance.

BARE FIBER OPTIC ADAPTOR

Bare Fiber Adapter can link bared optic and light source, testing equipment, light appearance etc, and the products used for test appearance and temporary conjunction between fiber optics extensively(repair fiber optic cable urgently).
