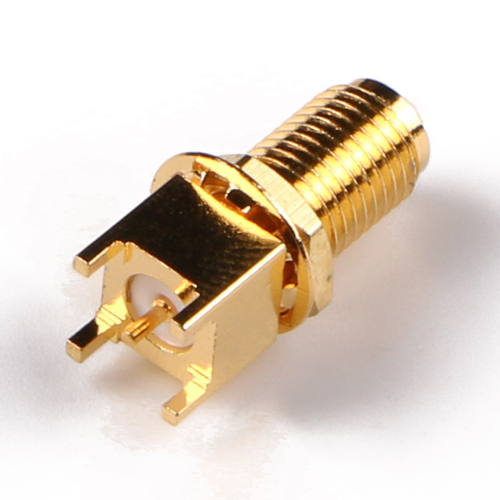

SMA Female Connector Solder Attachment for PCB

SMA Female Connector is 50 Ohm,Frenquency Range from DC to 12.4 GHz.
Description Review
Description
SMA Female Connector Solder Attachment for PCB

Key Description:

According to IEC 60169
  Material and Plating
Components Material Plating
Center conductor Beryllium Copper Au
Body Brass Au
Insulator PTFE /
Gasket Rubber /

  Electrical data
Characteristic Impedance 50 Ohm
Frenquency Range DC-12.4 GHz
VSWR ≤1.15
Dielectric Withstanding Voltage ≥4000V(rms)
Dielectric Resistance 10000 MΩ
Center Contact Resistance ≤3 mΩ
Outer Contact Resistance ≤2 mΩ
Durability Mating Cycles≥500
