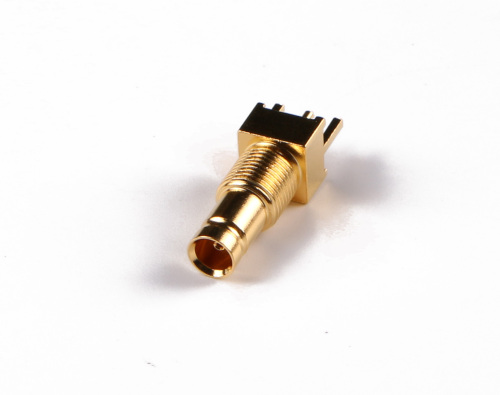

1.0/2.3(CC4) Male RA Connector for PCB

1.0/2.3(CC4) Male Connector is 50 Ohm,Frenquency Range from DC to 4 GHz.
1.0/2.3(CC4) Male Connector for PCB

Key Description:

According to IEC 60169
  Material and Plating
Components Material Plating
Center conductor bronze Au
Body Brass Au
Insulator PTFE /
Gasket Rubber /
  Electrical data
Characteristic Impedance 50 Ohm
Frenquency Range DC-4 GHz
VSWR ≤1.30
Dielectric Withstanding Voltage ≥4000V(rms)
Dielectric Resistance 10000 MΩ
Center Contact Resistance ≤0.4 mΩ
Outer Contact Resistance ≤2.5 mΩ
Durability Mating Cycles≥500
